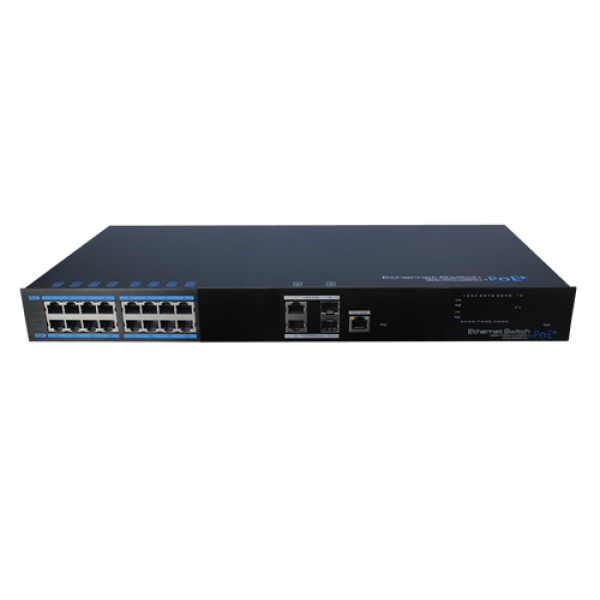

UTP7216E-POE-L2 * Switch 16 porturi POE+ cu management interfata management L2
Descriere Produs
Switch 16 porturi POE+ cu management L2 destinat in special sistemelor de securitate
- Distanta mare (120-150m) de conectare dispozitive PoE+.
- Port consola pentru administrare web.
- 16 porturi PoE +, 2 porturi Uplink ethernet si 2 porturi SFP
- Capacitate switch: 16Gbps LED-uri stare Link, PoE, Act, alimentare
- Rackabil in cabinete standard 19"
- Poate furniza pana la 30W pe port
- Protectie: ESD L3, descarcari electrice L3 (2KV)
- Management: interfata web (management functii L2 si alimentari PoE)
|
Reper |
Switch PoE 16 Porturi cu Management |
||
| Alimentare |
Sursa |
Integrata |
|
|
Gama Tensiuni |
100～240Vca |
||
| Consum | 320W (Incarcare maxima) | ||
| Conectori Retea |
Porturi Etehrnet |
Port 1~16: 10/100Mbps Port Ethernet, Control adaptiv, PoE |
|
|
Distanta Transmisie |
Port 1～16: Recomandat 120m Max.150m; |
||
| Protocol PoE | IEEE802.3af, IEEE802.3at | ||
| Tip Alimentare PoE | End-span | ||
| Putere PoE | Fiecare port ≤ 30W Total ≤ 250W |
||
| Switch |
Standarde Ethernet |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, |
|
| Capacitate Switch | 16G | ||
| Management | Management | Management L2 (VLAN, PoE, SNMPv1/2/3, RSTP, Telnet) | |
| Protectie |
ESD |
Level 3, Per: IEC61000-4-2 |
|
| Protectie descarcari electrice linii de comunicatie |
Level 3, Per: IEC61000-4-5 | ||
| Mediu |
Temepreatura de lucru |
0℃～55℃ |
|
| Temperatura de stocare |
-40℃-85℃ |
||
|
Umiditate (fara condens) |
0-95% |
||
| Proprietati Fizice |
Dimensiuni (L×W×H) |
442mm×315mm×44mm |
|
|
Material |
Metal |
||
|
Culoare |
Negru |
||
|
Greutate |
3.54kg |
||
