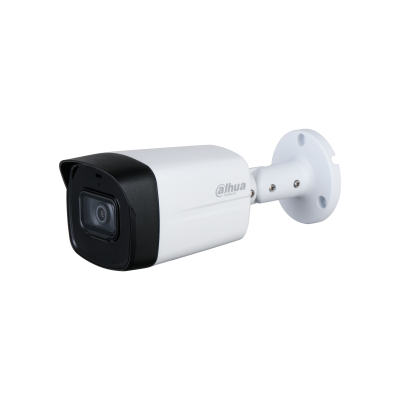

HAC-B3A21-Z-2712 * Camera Dahua HDCVI, 2MP, IR 40m, lentila motorizata 2.7-12mm, seria Cooper

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio

>65dB

Minimum Illumination

0.04lux/F1.7, 30IRE, 0Lux IR on

Fill Light Working Distance

40m (131.2ft）

IR On/Off Control

Auto; manual

IR LED Number

2

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Auto Focus

N/A

Mount Type

φ14

Focal Length

2.7 mm-12 mm

Max. Aperture

F1.7

Field of View

Diagonal: 38°– 125°

Horizontal: 33°–102°

Vertical: 19°– 53°

Iris Type

Fixed iris

Close Focus Distance

1.2 m (3.9 ft)

DORI Distance

Detect

Observe

Recognize

Identify

2.7mm

48.3m (158.5ft)

19.3 m (63.3 ft)

9.7 m

(31.8 ft)

4.8 m

(15.7ft)

12mm

131 m (429.8 ft)

52.4 m (171.9 ft)

26.2 m

(86.0 ft)

13.1 m

(43.0 ft)

Video

Frame Rate

CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
CVBS: 960H

Resolution

1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Electronic Defog

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

Power Consumption

Max 6.6W (12V DC, IR on)

Environment

Operating Temperature

-30°C to +60°C (-22°F to 140°F);<95% (non-condensation)

Storage Temperature

-30°C to +60°C (-22°F to 140°F);<95% (non-condensation)

Protection Grade

IP67
