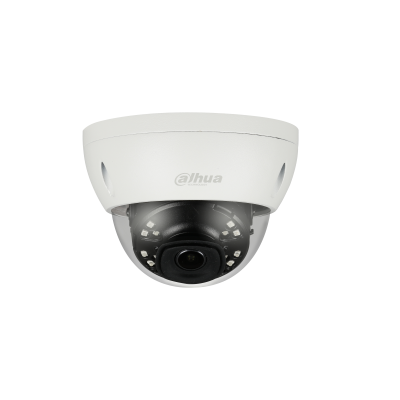

HAC-HDBW1200E-0280B-S5 * Camera Dahua HDCVI 2MP; DOME; IR:30M; lentila fixa 2.8MM; seria LITE

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio

> 65dB

Minimum Illumination

0.02Lux/F1.9, 30IRE, 0Lux IR on

Fill Light Working Distance

30 m (98.4 ft)

IR On/Off Control

Auto; manual

IR LED Number

12

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.9

Field of View

2.8 mm: 119° x 101° x 54°

(diagonal x horizontal x vertical)
3.6 mm: 100° x 84° x 45°

(diagonal x horizontal x vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.5 m (1.7 ft)
3.6 mm: 0.8 m (2.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m (126.6 ft)

15.4 m (50.5 ft)

7.7 m

(25.3 ft)

3.9 m

(12.8 ft)

3.6 mm

49.7 m (163.1 ft)

19.9 m (65.3 ft)

9.9 m

(32.5 ft)

5 m

(16.4 ft)

Video

Frame Rate

CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
CVBS: 960H

Resolution

1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Electronic Defog

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

Power Consumption

Max 3.4W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Storage Temperature
